Electronic Clean room
In recent years (since the establishment of the Ministry of Foreign Trade for 2 years), in the Wuxi Yichun Purification Ministry of Foreign Trade conscientious and unremitting efforts, just 2 years, Wuxi Yichun purification of foreign engineering business has been perfect 6 projects, the project distribution in India, Sri Lanka, Thailand, Bangladesh, etc., which Bangladesh small Yichun believes: can be called to assist Yichun to open up foreign markets to the world's first door. According to Xiao Yi, Wuxi Yi Pure purification has successfully accepted 3 clean projects in Bangladesh, of which 2 are for the electronics industry and 1 is for the food industry. This article is a successful case of a constant temperature and humidity purification workshop of Samsung Electronics (Bangladesh).
Customer & Project Profile:
Samsung Electronics is the largest electronics manufacturer in South Korea and the largest subsidiary of the Samsung Group. In the list of the 100 most famous trademarks in the world, Samsung Electronics is the only Korean trademark, a symbol of Korean national industry.
 |  |
| LCD production clean workshop | TV production dust-free purification workshop |
 |  |
| Class 100,000 assembly workshop | Other auxiliary purification workshop corner |
 | |
| Real picture of clean workshop and fast shutter door shower room | |
Samsung Electronics (Bangladesh) is mainly engaged in display, IT products, semiconductors and LCD production, easy purification in the Ministry of Foreign Trade in a few months under the successful contract of 4600 square purification workshop construction and decoration. Among them, the constant temperature and humidity purification workshop includes: TV production workshop, assembly workshop, other auxiliary clean workshop, a total of 3800 square meters of constant temperature and humidity purification workshop. Workshop floor adopts PVC floor of LG brand in Korea; Meet the requirements of anti-static level 2; Clean workshop temperature 18-26 degrees, temperature 50±5; Constant temperature and humidity air conditioning adopts the United States Trane Industrial clean air conditioning, one of the four major international air conditioning brands; Display and control system adopts Siemens Simens display and PLC control system.
 |  |

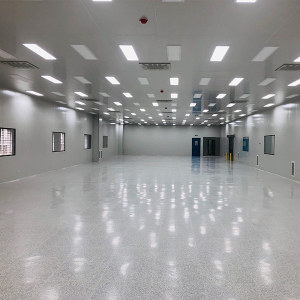

| TV production clean workshop | Clean room corner |
 | |
| Close-up of clean workshop and double insulating glass | |
 |  |

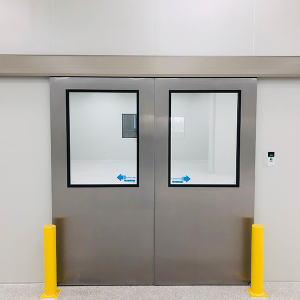

| Work access air shower and exit door | Automatic induction logistics door (moving door) real picture |
 |  |

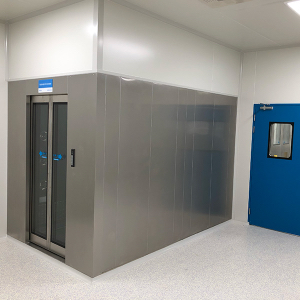

| 6 meters deep high-end all stainless steel induction door air shower | Auxiliary function room Clean room corner |
 |  |  |

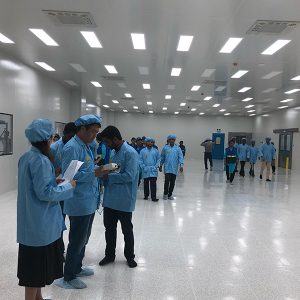

| The relevant person in charge of Party A shall conduct cleanliness test on site | PVC floor anti-static level test site | Air shower wind speed test greater than 28 meters per second |
 |  |  |
| Cleanliness check is up to standard | PVC floor anti-static level test has reached the standard | Air shower wind speed measured at 28 meters per second |
 |  |
| Press type emergency escape door | American Trane industrial clean air conditioning |
 |  |
| Automatic control engineering debugging and training site | Power electrical training and instruction on site |
Project case sharing:
 | Partition Wall - Rockwool handmade version Performance advantage: Fireproof duration: 90 minutes Beautiful surface, sound insulation, heat insulation, earthquake resistance, high strength, impact resistance, fire performance in line with national standards, suitable for electronics, medicine, chemical industry. Scheme parameters: Length: 2800mm; Width: 1180mm Thickness: 100mm Rock wool density: 120kg Thickness: 0.476mm; Yangzijiang galvanized sheet |
Ceiling - Magnesium oxysulfide handmade version Performance advantage: Fireproof duration: 90 minutes Strong hardness, good bearing force, stiffness, stability, impact resistance, earthquake resistance Good performance, corrosion resistance, the product significant characteristics of the material, Good fire resistance, can meet the needs of any fire rating. Scheme parameters: Length: 3000mm; Width: 1180mm Thickness: 100mm Load: 280kg/m² Thickness: 0.476mm; Yangzijiang galvanized sheet |  |
 | Clean doors & clean viewing Windows Steel finished clean door: Beautiful appearance, door body mold molding, no gap, corrosion resistance, flat, high strength, corrosion resistance, no dust, easy to clean and other advantages, convenient installation, fast. Door frame width adjustable, good sealing. Clean insulating glass observation window: The insulating glass observation window is composed of two or more pieces of glass, and is filled with dry air or inert gas, which can reduce noise about 35-40 decibels and has good thermal insulation performance; There is no condensation in the hollow glass observation window. The clean window size of this solution is customized: 2360mm*1500mm. |
Performance advantage: Clean lamp for beveled edge design, can be seamlessly combined with color steel plate, no dust, easy to clean, low energy consumption, no dead corners, high quality LED chip, power saving and durable, restore true light color, bright and durable. Configuration parameters: Power: 48W; Illumination: 380Lux Life: Use time ≥50000h. Size: 600*600mm, 300*1200mm |  |
 | Floor scheme PVC anti-static floor: PVC anti-static floor (LG imported floor); 104-109 electrostatic resistance to ground; Electrostatic copper foil 600*600 type, to meet the requirements of anti-static level 2. Performance characteristics: The PVC floor for environmental protection products effective anti-moth, anti-mildew, not easy to corrosion. Safety performance: Excellent anti-slip, light weight, good elasticity, comfortable feet. Health performance: super pollution resistance, easy to clean, super wear-resistant, long life. |
Constant temperature and humidity air conditioning unit Specification parameters: Using one of the four major international air conditioning brands of the United States Trane industrial clean air conditioning. Temperature control: 18-26℃ Humidity range: 50%±5 Air volume parameters: TAC-1: Total air supply: 72000chm; Fresh air 18000chm TAC-2: Total air supply: 72000chm; Fresh air 18000chm TAC-3: Total air supply: 50000chm; Fresh air 15,000CHm TAC-4: Total supply air: 50000chm; Fresh air 15,000CHm |  |
 | Air shower (Character channel air shower) Configuration features: Process: SUS304 wire drawing or mirror stainless steel production, automatic computer typesetting laser cutting processing, automatic CNC forming bending; The equipment has high accuracy in opening holes and cutting angles, and the bending flatness of the shearing plate is good. Door closing device: Imported German Doma door closing device (designated brand of KFC stores) Electronic lock: LCJ Lux Jian Electronic interlock (the first brand of electric lock in China) Photoelectric switch: imported Japanese Omron photoelectric switch Sealant: Dow Corning sealant imported from the United States Specification parameters: Configuration model: AS-6 automatic induction door air shower Quantity: 3 onsite installation and commissioning |

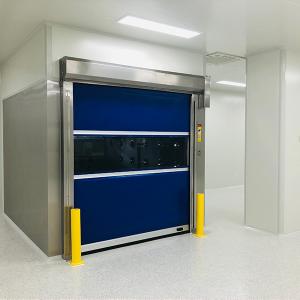

Fast shutter door cargo shower Configuration features: Process: High-strength anti-oxidation aluminum alloy door frame 120×130㎜, silver, in line with 6063-T6 standard, cold-tied steel electrostatic spraying door frame 140×150㎜, cold-tied plate electrostatic spraying door cover. Power: German SEW series brake motor Control system: microcomputer inverter control box imported from Japan (Mitsubishi cpu) Fire rating: German standard MZD/NBL flame retardant. Specification parameters: Overall dimensions (mm) : 3000*3000*3000 Internal dimensions (mm) : 2000*3000*2500 |  |
 | Automatic control system Temperature automatic control system: computer + management software + on-site control extension, mainly used to record temperature and equipment operation data. Save manpower, power, easy to use. Humidity automatic control system: The system can monitor and record the humidity, and transmit the humidity data to the PC in real time. The humidity intelligent management software is used to monitor and control the humidity in real time and accurately. Automatic monitoring system: it can receive and execute monitoring instructions without direct participation, so that the controlled object can automatically achieve the working state and control function required by the instruction. Operation mode automatic control system: automatic control device with work mode, work mode, overtime and other modes. |
-
Bangladesh electric clean room... Class Level:10,000(Class D)Area:3000m²Add:Bangladesh
